一、高温引伸计产品简介：

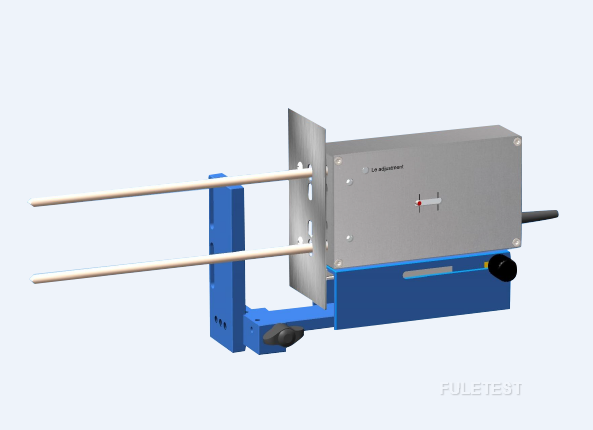

1600度/1700度高温引伸计配合高温拉伸试验机用于各种材料高温力学的应变测试。可配FLWK1200度高温炉\1600度高温炉\1700度高温炉\真空高温炉等使用。The MFHT 5 has been conceived as a highly accurate, sturdy measuring device for hot tensile tests in a folding furnace. 2 initial gauge lengths are offered as standard. Le 25 mm and Le 50 mm can be adjusted quickly and fast by turning over the feeler arms. Due to its extremely low activating force, the unit enables the testing of highly sensitive samples which permit only the lowest surface pressures.
三、高温引伸计主要技术规格
Accuracy class准确等级 EN ISO 9513 0.5
Measurement principal测量原理 strain-gauge full bridge全桥应变
Travel 变形量 +/- 5 mm
Activating force初始力 ≈ 10 cN
Contact pressure feeler arms触杆接触压力 ≈ 200 cN
Indication error (v. A.)*精度 0.5 %
Indication error *分辨力 1,5 μm
Initial gauge length标距 25 mm and 50 mm
Error of initial gauge length标距误差 +/- 0,1 mm
Rated bridge resistant额定桥电阻 350 Ω
Nominal sensitivity敏感度 2 mV/V
Recommended voltage supply建议电压 max. 10 V (5 kHz)
Standard feeler arms 标准陶瓷杆 Ceramic (Al23) up to 1700 °C
Other feeler arms (length and shape of edge ) on request
Other initial gauge lengths on request
Weight 0.7 kg
Weight with clamping device 1.2 kg
关于1600度/1700度高温引伸计其他特殊需求联系馥勒工程师。
